Upc Island Vent - Robert / westcoast's picture is a great display of a.

Upc Island Vent - Robert / westcoast's picture is a great display of a.. Made from commercial grade 304 stainless steel, this island vent covers ventilation openings in outdoor kitchens for a clean look. The island vent illustrated above is per the uniform plumbing code. A vent that connects to a horizontal drainage branch and vents two traps to a maximum of eight traps or trapped fixtures connected into a battery. 36 stainless steel outdoor vent hood island. Loop vent method requires fittings be of drainage type on vent below floor.

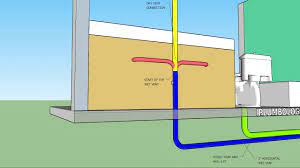

(upc 909.1) vents unless prohibited by structural conditions, the vent must rise vertically 6 above the flood. The required vent shall be a dry vent that connects to the building drain or an extension of a drain that connects to the building drain. (upc 909.1) vents unless prohibited by structural conditions, the vent must rise vertically 6 above the flood level. The plumbing vent for an island sink or fixture is returned back dow and connected to the horizontal portion of the sink drain piping immediately downstream from the vertical portion of the drain as is illustrated in the schematic above on this page. I'm laying out the floor plan for a small cafe.

Upc Ch 9 Vents Flashcards Quizlet
Upc Ch 9 Vents Flashcards Quizlet from quizlet.com
I do tend to steer away from house brand aav's, though. (upc 909.1) accessible cleanout in vertical section of foot vent. This component features #304 stainless steel construction to ensure a long lasting product, while also complementing the rest of summerset line of products for a seamless, matching look throughout your outdoor kitchen. Definition of circuit vent in plumbing vent systems. Note that at the top of the island vent illustrated above both vertical risers have an 1/8 bend with a short section rising at a 45deg angle to a 1/4 bend forming a point on top. The iapmo group is a complete service organization providing: Made from commercial grade 304 stainless steel, this island vent covers ventilation openings in outdoor kitchens for a clean look. (upc 909.1) vents unless prohibited by structural conditions, the vent must rise vertically 6 above the flood level.

Therefore, the circuit vent is no different but may not be less than 2 inches in diameter.

If the government is covering up knowledge of aliens, they are doing a better job of it then they do at anything else. The required vent shall be sized in accordance with section 916.2 based on the required size of the building drain. 909.0 special venting for island fixtures traps for island sinks and similar equipment shall be roughed in above the floor and may be vented by extending the vent as high as possible, but not less than the drainboard height and then returning it Loop vent method requires fittings be of drainage type on vent below floor. Therefore, the circuit vent is no different but may not be less than 2 inches in diameter. 904 vent stacks 904.1 installation a vent stack or main vent shall be installed with a soil or waste stack whenever back vents, relief vents or other branch vents are required in two or more branch intervals. Here is how the upc states the procedure of roughing in an island sink: The intent of this bulletin is to clarify the use of special venting for island fixtures, commonly known as loop venting, to be used at other sink locations when structural framing conditions prohibit the standard plumbing vent system from being used. (upc 909.1) drain serving the island serves no other fixtures upstream from return vent. Loop vent method requires fittings be of drainage type on vent below floor. No fixture shall be permitted to drain into any stack above any vent connection. Traps for island sinks and similar equipment shall be roughed in above the floor and shall be permitted to be vented by extending the vent as high as. That island loop picture posted by wcp is correct, except you have to have a clean out on the vent in the wall and it has to be accessible.

The vent located below the flood level rim of the fixture being vented shall be installed as required for drainage piping in accordance with chapter 7, except for sizing. The required vent shall be a dry vent that connects to the building drain or an extension of a drain that connects to the building drain. $1,399.99 — you save $900.00 quantity: The vent located below the flood level rim of the fixture being vented shall be installed as required for drainage piping in accordance with chapter 30, except for sizing.the vent shall be sized in accordance with section p3113.1.the lowest point of the island fixture vent shall connect full size to the drainage system. Use more than one to ensure proper ventilation.

Plumbing Vent System In Multistory Building 2019 03 27 Plumbing Mechanical
Plumbing Vent System In Multistory Building 2019 03 27 Plumbing Mechanical from www.pmmag.com
The plumbing vent for an island sink or fixture is returned back dow and connected to the horizontal portion of the sink drain piping immediately downstream from the vertical portion of the drain as is illustrated in the schematic above on this page. The connection shall be to a vertical drain pipe or to the top half of a horizontal drain pipe. The iapmo group is a complete service organization providing: (upc 909.1) accessible cleanout in vertical section of foot vent. That island loop picture posted by wcp is correct, except you have to have a clean out on the vent in the wall and it has to be accessible. Loop vent method requires fittings be of drainage type on vent below floor. A vent that connects to a horizontal drainage branch and vents two traps to a maximum of eight traps or trapped fixtures connected into a battery. Made from commercial grade 304 stainless steel, this island vent covers ventilation openings in outdoor kitchens for a clean look.

(upc 909.1) drain serving the island serves no other fixtures upstream from return vent.

Installing a sink in a kitchen island presents a venting conundrum for the plumber. Note that at the top of the island vent illustrated above both vertical risers have an 1/8 bend with a short section rising at a 45deg angle to a 1/4 bend forming a point on top. The vent located below the flood level rim of the fixture being vented shall be installed as required for drainage piping in accordance with chapter 30, except for sizing.the vent shall be sized in accordance with section p3113.1.the lowest point of the island fixture vent shall connect full size to the drainage system. • traps for island sinks and similar equipment shall be roughed in above the floor and shall be permitted to be vented by extending the vent as high as possible, but not less than the drain board height and then returning it downward and connecting it to the horizontal sink drain immediately downstream from the vertical sink fixture drain. When a kitchen island has a sink, the vent has to go through the floor to connect to the vertical vent stack, and to overcome the problem of the vent having a downward slope, the code allows a structure called a loop vent. (upc 909.1) drain serving the island serves no other fixtures upstream from return vent. I'll use an aav on an island sink w/out hesitation. Joined nov 25, 2009 messages 8,336 location That island loop picture posted by wcp is correct, except you have to have a clean out on the vent in the wall and it has to be accessible. It works in both natural gas and propane outdoor kitchens. No fixture shall be permitted to drain into any stack above any vent connection. The connection shall be to a vertical drain pipe or to the top half of a. Almost a legit island vent per upc 909.1.

The two island sink photographs just above show a recent (2014) island sink installation in. This component features #304 stainless steel construction to ensure a long lasting product, while also complementing the rest of summerset line of products for a seamless, matching look throughout your outdoor kitchen. Made from commercial grade 304 stainless steel, this island vent covers ventilation openings in outdoor kitchens for a clean look. Loop vent method requires fittings be of drainage type on vent below floor. Such vent shall not be an island fixture vent as allowed by section 913.

Https Www Sos State Co Us Ccr Generaterulepdf Do Ruleversionid 1205 Filename 3 20ccr 20720 1
Https Www Sos State Co Us Ccr Generaterulepdf Do Ruleversionid 1205 Filename 3 20ccr 20720 1 from
Each component of the iapmo group works. Almost a legit island vent per upc 909.1. It does appear to take some liberty, as the foot vent should go to the nearest partition and have a cleanout at the baseboards. I do tend to steer away from house brand aav's, though. The connection shall be to a vertical drain pipe or to the top half of a. An oatey is always my first choice, but i will use a studor if that is all that is available. That island loop picture posted by wcp is correct, except you have to have a clean out on the vent in the wall and it has to be accessible. From the 2015 upc illustrated training manual.

Made from commercial grade 304 stainless steel, this island vent covers ventilation openings in outdoor kitchens for a clean look.

The vent shall be sized in accordance with section 906.2. Robert / westcoast's picture is a great display of a. I'm laying out the floor plan for a small cafe. The intent of this bulletin is to clarify the use of special venting for island fixtures, commonly known as loop venting, to be used at other sink locations when structural framing conditions prohibit the standard plumbing vent system from being used. Almost a legit island vent per upc 909.1. No fixture shall be permitted to drain into any stack above any vent connection. The iapmo group is a complete service organization providing: (upc 909.1) drain serving the island serves no other fixtures upstream from return vent. The connection shall be to a vertical drain pipe or to the top half of a. The required vent shall be a dry vent that connects to the building drain or an extension of a drain that connects to the building drain. 36 stainless steel outdoor vent hood island. Therefore, the circuit vent is no different but may not be less than 2 inches in diameter. (upc 909.1) accessible cleanout in vertical section of foot vent.
